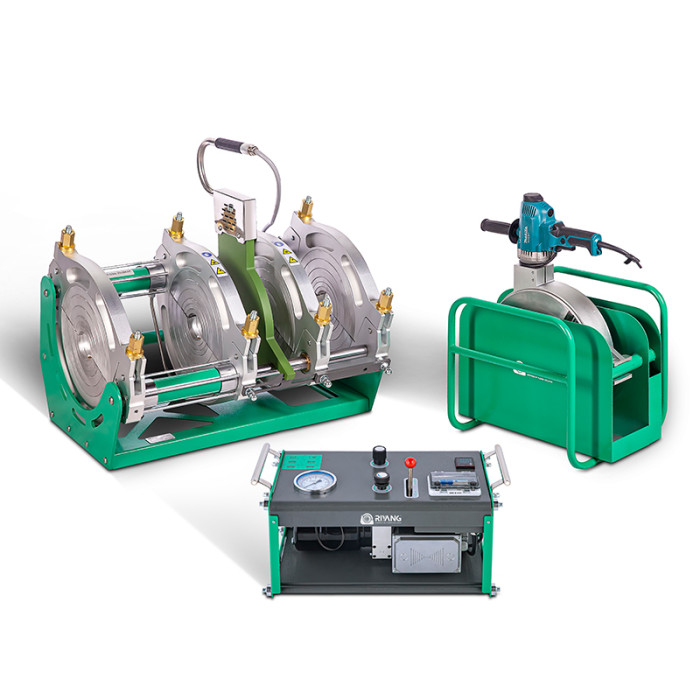

High Pressure Butt Fusion Machine V315SHP 90MM-315MM (3" IPS -12" IPS)
High Pressure Butt Fusion Machine V315SHP 90MM-315MM (3" IPS -12" IPS)
| Categories | Hydraulic Butt Fusion Machines |
|---|---|
| Brand | RIYANG |
| Model | V315 |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| Working Range in MM | 90mm - 315mm |
| Working Range in Inch | 3" - 12" IPS |
| Working Pressure Range | 0 - 180Bar |
| HDPE Welding Standard Applied | ISO21307, ASTM F2620 etc. |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Download |  |
| Update Time | Apr 24,2025 |
Detail Information
High Pressure Butt Fusion Machine V315SHP 90MM-315MM (3" IPS -12" IPS)
The V315SHP Poly Welder from Riyang is designed to meet the demanding requirements of various applications, ensuring precise and reliable fusion welding. Key application areas include:
● Water Infrastructure: Ideal for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
● Gas Distribution Systems: A reliable solution for welding pipes in gas distribution systems, ensuring the integrity of gas infrastructure.
● Industrial Pipelines: Suited for a range of industrial applications utilizing thermoplastic pipes, providing durable fusion joints.
● Mining Industry: The V315 excels in the mining sector, delivering efficient fusion welding for pipelines critical to mining operations, ensuring dependable and durable connections for water, chemicals, or other resources.
|
Product Details
|
|||
|
WELDING RANGE O.D.
|
90MM - 315MM
|
WELDING RANGE INCH
|
3"IPS - 12" IPS
|
POWER SUPPLY | 220V±10%, 50/60HZ | TEMPERATURE RANGE | MAX. 320ºC |
HEATER POWER | 3.0 KW | PACKING DIMENSION | 930*620*630 MM |
|
TRIMMER POWER
|
0.85 KW
|
630*600*730 MM
|
|
|
PUMP POWER
|
1.1 KW
|
650*340*380 MM
|
|
WORKING PRESSURE RANGE | 0 - 180 BAR | GROSS WEIGHT | 241KGS |
● The body is crafted from precision-machined aluminum, providing exceptional strength and accuracy.
● The sealing kit assembly uses internationally renowned brands, offering excellent pressure retention.
● The entire machine is designed for easy disassembly and installation, enhancing portability and convenience
Trimmer
● It features a newly designed milling cutter paired with a Makita electric drill, significantly improving performance.
● The trimmer body is made from hard aluminum, ensuring high strength and accuracy.
● The non-deformable trimmer plate makes the milled pipe surface smoother, making perfect preparation for bead up.
● Ergonomic operation handle designed in accordance with ergonomic principles.
Power Station
● Robust hydraulic power with a maximum system pressure of up to 180 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
Data Logger
Aluminum Stub End Holder
Roller Support
Inserts
