Electrofusion Machine FORCEMAX30-3K5 20MM - 315MM
| Categories | Electrofusion Machines |
|---|---|
| Brand | RIYANG |
| Model | FORCEMAX30-3K5 |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | Nov 25,2024 |
Detail Information

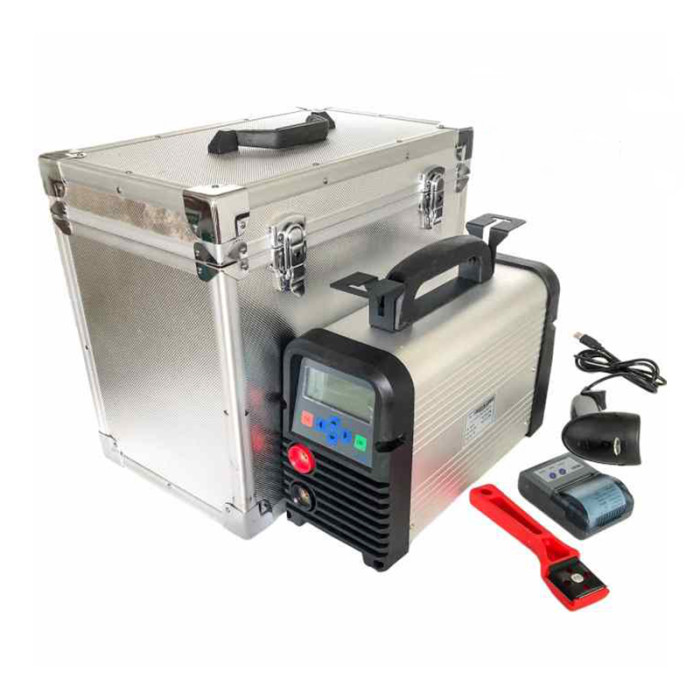

Electrofusion Machine FORCEMAX 30-3K5 20MM-315MM
Electrofusion Machine FORCEMAX 30-3K5 is a special connecting device used for polythene pressure and non-pressure pipe electrofusion or socket connection.
|
Product Details
|
|||
|
WELDING RANGE O.D.
|
20MM - 315MM
|
RATED POWER
|
3.5KW
|
POWER SUPPLY | 220V±20% | RATED CURRENT | 60A |
RATED VOLTAGE | 70V | DIMENSION | 396*203*335 MM |
|
NET WEIGHT
|
13KGS
|
PACKING MATERIAL |
ALUMINUM BOX
|
|
INPUT POWER SUPPLY
|
|||
|
INPUT VOLTAGE
|
220V±20%
|
||
INPUT FREQUENCY | 40~65HZ | ||
OUTPUT POWER SUPPLY | |||
RATED VOLTAGE | 70V | ||
RATED POWER | 3.5KW | ||
CONTROL CHARACTERISTICS | |||
CONTROL MODE | CONSTANT VOLTAGE, CONSTANT CURRENT | ||
ELECTRIC QUANTITY CONSTANT PRECISION | ≤ ±0.5% | ||
TIME CONTROL PRECISION | ≤ ±0.01% | ||
TEMPERATURE MEASURING PRECISION | ≤1% | ||
FUNCTIONAL CHARACTERISTICS | |||
PROGRAMMING WELIDNG FUNCTION | SUPPORT MULTIPLE PROGRAMMING WELDING, ADAPT TO DIFFERENT PIPE WELDING REQUIREMENTS | ||
PAUSE HOLD FUNCTION OF WELDER | SET SUSPENDED WELDING IN THE WELDING PROCESS, AND CONTINUE TO WELDING AFTER PUASE CANCELED. | ||
DATA STORAGE FUNCTION | STORAGE WELDING RECORDS, ENGINEERING CODE, PIPE INFOMATION. | ||
USB INTERFACE FUNCTION | USB DATA IMPORT AND EXPORT | ||
AMBIENT | |||
AMBIENT TEMPERATURE | -20 ~ 50℃ | ||
STORAGE TEMPERATURE | -30~70℃ | ||
HUMIDITY | 20%~90%RH, NO CONDENSATION | ||
GPS location
Scanner
Printer
