Trailer Fusion Machine ARMOR 1200i Trailer 630mm-1200mm (24" IPS - 48'' IPS)
Trailer Fusion Machine ARMOR 1200i Trailer 630mm-1200mm (24" IPS - 48'' IPS)
| Categories | ARMOR series |
|---|---|
| Brand | RIYANG |
| Model | ARMOR 1200i |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Pallet |
| MOQ | 1set |
| Working Range in MM | 630mm - 1200mm |
| Working Range in Inch | 24 - 48Inch |
| Working Pressure Range | 0 - 180Bar |
| Welding Standard Applied | ASTM F2620-20, ISO 21307 SHP |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | Apr 3,2025 |
Detail Information

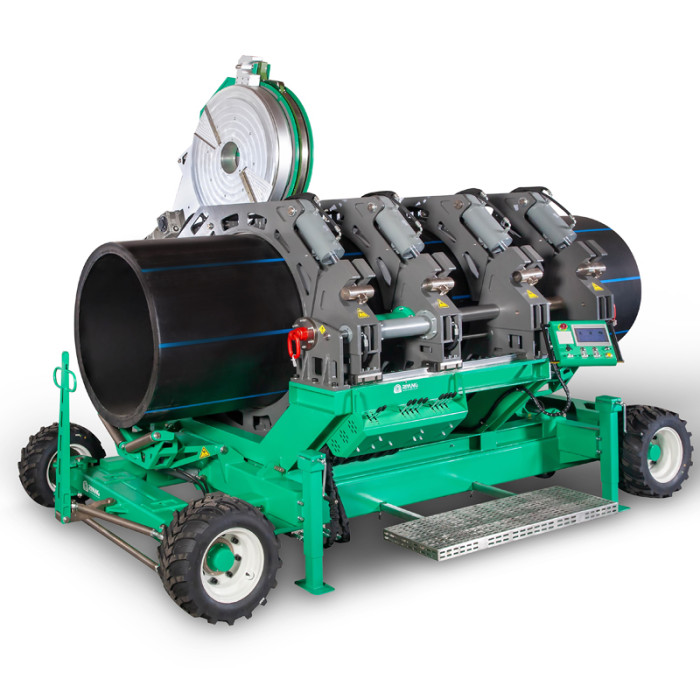

Butt Fusion Machine ARMOR 1200i Trailer 630MM-1200MM (24" IPS - 48'' IPS)
Riyang ARMOR 1200i is a high-performance hdpe pipe welding machine with trailer mobility, designed to excel on construction sites.
It boasts a welding range from 630mm to 1200mm or 24" to 48", adhering to ISO21307 and ASTM F2620 high-force standards.
With a fully automated system featuring SIEMENS PLC technology, ARMOR 1200i ensures precision and reliability.
This machine guarantees strength and accuracy for all your high pressure welding needs.
|
Product Details
|
|
|
Models
|
|
902306120, ARMOR 1200i | Automatic, High Force, 220/380V, 50/60Hz, 3 Phase |
902307120, ARMOR 1200 | Manual, High Force, 220/380V, 50/60Hz, 3 Phase |
|
Capacity
|
|
|
Welding Range
|
630mm-1200mm, 24"IPS-48"IPS
|
Inserts Type | 0 - 180BAR |
Power | |
Heater | 24KW |
Trimmer | 4KW |
Electric Motor | 11KW |
Hydraulic | |
System Pressure | 180 Bar (2610 PSI) Max. |
Hydraulic Reservoir Capacity | 95 Liters (25 Gallons) |
Weight | |
Machine | 7900 Kg (17380 lbs.), including inserts |
Shipping | 7900 Kg (17380 lbs.), including inserts |
Chassis | |
Frame | Welded steel tube construction |
Front Axle | Linkage |
Tires | High-flotation inflatable tires |
Transportation | Pulled via towing ring |
Machine Carriage | Removable |
Dimension | |
Machine | 4500mm x 2770mm x 2650mm 177" x 109" x 104" |
Machine Carriage | 2567mm x 2770mm x 2190mm 101" x 109" x 86" |
Shipping | 4500mm x 2770mm x 2650mm
177" x 109" x 104" |
Optional Configuration | |
Inserts | √ |
Stub End Device | √ |
Mobile Support Roller | √ |
Data Logger | Compatible with manual version |
•The frame structure with a guide rail design enhances strength and even distribution of welding force
•Hydraulic pivoting heating plate with protection frame and insulated shield. Heating element is changeable
•Hydraulic pivoting high capacity trimmer driven by electric motor
•Removable machine chassis for in-ditch use
• Removable 4th jaw for enhanced convenience in fusing prefabricated fittings onto the pipe
•Strong jaws and inserts keep pipe from slipping during fusion
• Hydraulic pipe lift on both sides aimed in loading and unloading pipe
• Rugged outriggers for stability
•Hydraulic clamping
•Data logger (PEWELDBANK) is compatible
(manual version)
• emovable control panel with data-logging, memory up to 10,000 welding reports; USB port for welding data download / firmware upgrade
• Easy welding procedure achieved by operator just pressing the button
• Remote troubleshooting
