Home / All / Butt Fusion Machine / Hydraulic Butt Fusion Machines /

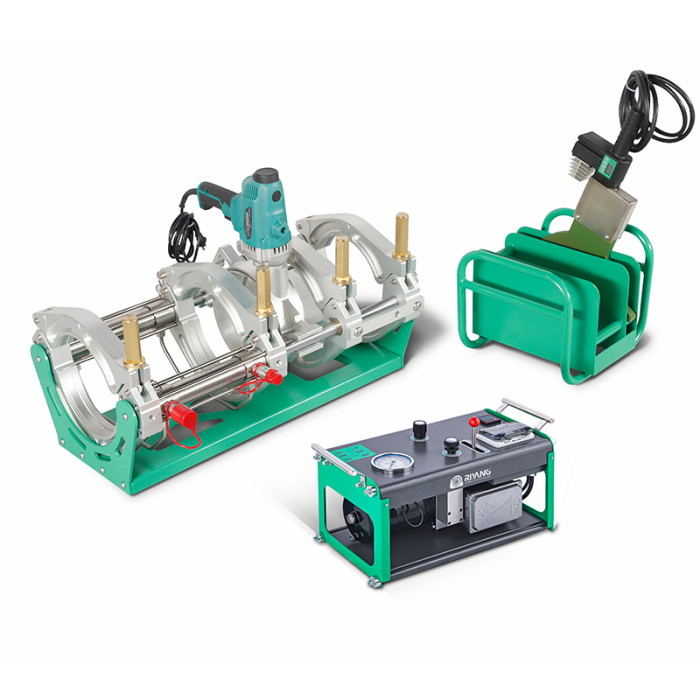

High Pressure Butt Fusion Machine V200PII 63MM-200MM (2" IPS -6" IPS)
High Pressure Butt Fusion Machine V200PII 63MM-200MM (2" IPS -6" IPS)
Detail Information
The V200PII Butt Fusion Welding Machine from RIYANG is designed to meet the demanding requirements of various applications, ensuring precise and reliable fusion welding. Key application areas include:
● Water Infrastructure: Ideal for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
● Gas Distribution Systems: A reliable solution for welding pipes in gas distribution systems, ensuring the integrity of gas infrastructure.
● Industrial Pipelines: Suited for a range of industrial applications utilizing thermoplastic pipes, providing durable fusion joints.
● Mining Industry: The V200PII excels in the mining sector, delivering efficient fusion welding for pipelines critical to mining operations, ensuring dependable and durable connections for water, chemicals, or other resources.
|
Product Details
|
|||
|
WELDING RANGE O.D.
|
63 - 200 MM
|
WELDING RANGE INCH
|
2" - 6" IPS
|
POWER SUPPLY | 220V±10%, 50/60 HZ | TEMPERATURE RANGE | MAX. 300 ºC |
HEATER POWER | 1.5 KW | PACKING DIMENSION | 820*400*440 MM |
|
TRIMMER POWER
|
0.85 KW
|
450*470*550 MM
|
|
|
PUMP POWER
|
1.1 KW
|
650*340*380 MM
|
|
WORKING PRESSURE RANGE | 0 - 180 BAR | GROSS WEIGHT | 158 KGS |
● The body is crafted from precision-machined aluminum, providing exceptional strength and accuracy.
● The inner inserts employs a single-size quick-fit structure for rapid installation and high efficiency.
● The inner clamp is designed to effectively prevent pipe slippage, ensuring secure and precise welding.
● Both the cylinder and tie rod are made of stainless steel, eliminating concerns about rust and ensuring long-term durability.
● The sealing ring assembly uses internationally renowned brands, offering excellent pressure retention.
● The entire machine is designed for easy disassembly and installation, enhancing portability and convenience.
● The V200 PII features a newly designed milling cutter paired with a Makita electric drill, significantly improving performance.
● The milling cutter's body is made from precision-machined aluminum, ensuring high strength and accuracy.
● The milling cutter utilizes a turbine drive system, delivering more powerful and stable output.
● Robust hydraulic power with a maximum system pressure of up to 180 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
● Data logger PeWeldBank is compatible with this model.
Data Logger
Aluminum Stub End Holder
Roller Support
Inserts
