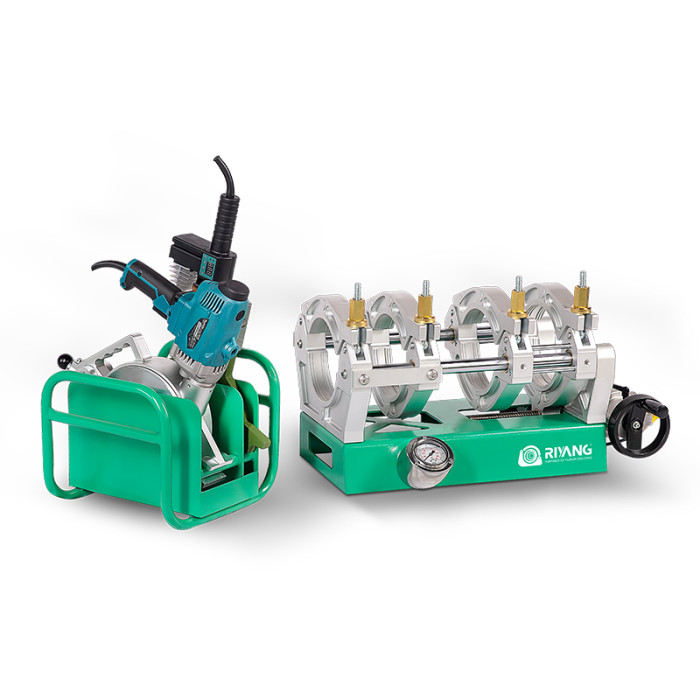

Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)
Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)
| Categories | Manual Butt Fusion Machines |
|---|---|
| Brand | RIYANG |
| Model | V160M PII |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| Range in inch | (2 |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | Dec 21,2024 |
Detail Information
Manual Butt Fusion Machine V160M PII 50MM-160MM (2" IPS - 6" IPS)
Riyang V series M is an on-site manual butt fusion welding machine with a pressure gauge.
It is used to butt weld pipe and fittings such as elbow, tees, wye, and flange necks without any additional equipment by simply adjusting the clamps and drag bar.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF, and other thermoplastics material.
|
Product Details
|
|||
|
WELDING RANGE O.D.
|
50MM - 160MM
|
POWER SUPPLY
|
1.8KW
|
POWER SUPPLY | 220V±10%, 50/60HZ | TEMPERATURE RANGE | MAX. 300ºC |
GROSS WEIGHT | 68KGS | PACKING DIMENSION | 450*480*420 MM |
|
PACKING MATERIAL
|
PLYWOOD BOX
|
380*420*570 MM
|
|
What makes the V160M PII stand out?
Versatility and Adaptability
Whether in an indoor workshop or an outdoor construction site, the V160M PII excels in both environments. Its robust design ensures reliable performance regardless of the location or conditions.
User-Friendly Design
The V160M PII features a hinged clamp design on its frame, making it exceptionally easy to operate and install. This design simplifies the setup process, allowing for quick and efficient deployment.
Superior Build Quality
Constructed from precision-machined aluminum, the V160M PII boasts exceptional strength and accuracy. The high-quality materials and meticulous craftsmanship ensure durability and long-term reliability.
Enhanced Trimming Performance
Equipped with a newly designed trimmer paired with a Makita electric drill, the V160M PII offers significantly improved performance. This combination provides precise and efficient trimming capabilities, enhancing overall productivity.
Advanced Hydraulic System
The V160M PII includes a hydraulic system that accurately reads pressure levels. Additionally, it can be equipped with RIYANG's PeWeldBank data logger, enabling detailed monitoring and recording of welding parameters for quality assurance and traceability.
