Weldy energy HT1600 | RIYANG STORE
| Categories | Plastic Sheet Welding Machines |
|---|---|
| Brand | RIYANG |
| Model | energy HT1600 |
| Certificate | CE, ISO9001 |
| Packing Material | Plastic Box |
| MOQ | 6sets |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | Apr 1,2025 |
Detail Information

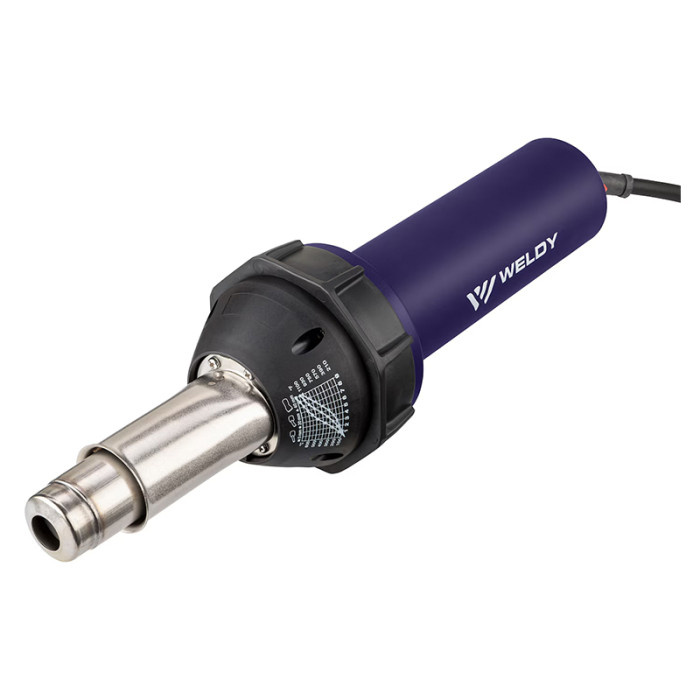

Weldy energy HT1600
The energy HT1600 heat gun from Weldy is very powerful. It is equipped with a stepless temperature control up to 700 °C / 1292 °F and a robust brush motor with a ceramic heating element. The plastic welding device is suitable for a variety of professional and handyman tasks. Weighing only 1 kg / 2.2 lbs, the energy HT1600 heat gun makes work extremely easy. Various accessories available from Leister include nozzles and welding rods to quarter moon knives, enabling a multitude of applications.
|
Product Details
|
|||
|
VOTALGE
|
120 - 230 V
|
POWER
|
1600W
|
TEMPERATURE ADJUSTED | 40 - 700 ℃ | AIR FLOW (20℃) | MAX 240 L/MIN |
TEMPERATURE SETTING STEPLESS | YES | STEPLESS AIR VOLUME ADJUSTMENT | NO |
STATIC PRESSURE | 2600 PA | NOISE EMISSION LEVEL | 67 dB (A) |
OUTDOOR USE | YES | DISPLAY | NO |
ECO MODE | NO | E-DRIVE | NO |
NOZZLE CONNECTION Φ | 31.5 MM/1.25 IN | LENGTH | 346.0MM |
DEVICE DIAMETER | 101 MM | HANDLE DIAMETER | 59 MM |
WEIGHT | 0.99 KG | FREQUENCY | 50/60 HZ; 60 HZ |
POWER CABLE LENGTH | 3.0 M | CONFORMITY MARK | CE |
SAFETY MARK | KCC | PROTECTION CLASS | II |
※ Ceramic heating element
※ Cool-down function
※ Durable housing
※ Temperature reaches up to 700℃
※ Dust protection
The Weldy HT 1600 heat gun can also be purchased in three other editions as a complete set. The "plastic kit" variant, including a 5 mm / 0.19 inch tube nozzle and a 4 mm / 0.16 inch quick welding nozzle; the variant "overlap kit" has two overlap nozzles, each 40 mm and 20 mm / 0.8 inch, and a silicone pressure roller. Last, but not least, the "shrinkage kit" is equipped with two overlap nozzles, 40 mm / 0.16 inch and 20 mm / 0.8 inch, and a reflector nozzle. The Weldy manual welding kits are supplied with operating instructions in 28 languages and a durable plastic tool case. In the standard design, Weldy HT1600 has cardboard packaging.
