Home / All / Plastic Welding Machines / WELDY /
Weldy Hot Wedge Welder miniwelder GEO2 | RIYANG STORE
Weldy Hot Wedge Welder miniwelder GEO2 | RIYANG STORE
| Categories | WELDY |
|---|---|
| Brand | RIYANG |
| Model | miniwelder GEO2 |
| Certificate | CE, ISO9001 |
| Packing Material | Aluminum Box |
| MOQ | 1set |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | Apr 1,2025 |
Detail Information

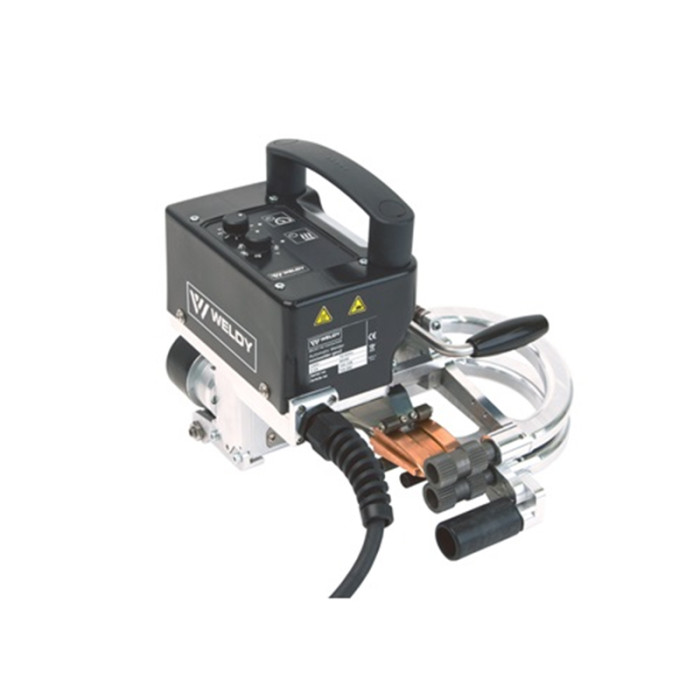

Weldy Hot Wedge Welder miniwelder GEO2
The lightweight and quick miniwelder geo2 from Weldy is suitable to weld geomembranes ranging from 0.5 - 1.5 mm thickness (HD-PE 0.4– 1.0 mm; TPO 0.7 – 1.5 mm). It can be used to weld fish farm tanks, water tanks, gardens, foundations, and many other industrial areas. The miniwelder geo2 distinguishes itself through its revolutionary drive technology and its intuitive operation. The temperature and speed can easily be activated and deactivated with two buttons and adjusted using two dials. The current process status is displayed by two LEDs.
|
Product Details
|
|||
|
VOLTAGE
|
120 - 220V
|
POWER
|
800W
|
FREQUENCY | 50/60 HZ | TEMPERATURE | 60 ℃ - 480 ℃ |
SPEED | 0.4 - 7.5 M/MIN | WELDING TECHNOLOGY | HOT WEDGE |
HOT WEDGE LENGTH | 50 MM | HOT WEDGE WIDTH | 36 MM |
|
HOT WEDGE MATERIAL
|
COPPER; STAINLESS STEEL
|
MAX. OVERLAP |
100 MM
|
WELD SEAM WIDTH | 2 x 12 MM / 2 x 0.47 IN | LQS | NO |
LENGTH | 228.0 MM | WIDTH | 228.0 MM |
HEIGHT | 170.0 MM | WEIGHT | 3.9 KG |
WELDING MATERIALS | PE; LD-PE; LLD-PE; HD-PE; PP; FPO; PVC; CSPE | POWER CABLE LENGTH | 3.0 M |
CONFORMITY MARK | CE | PROTECTION CLASS | I |
※ Weighs less than 4 kg
※ Compact housing
※ For gardening projects and much more
