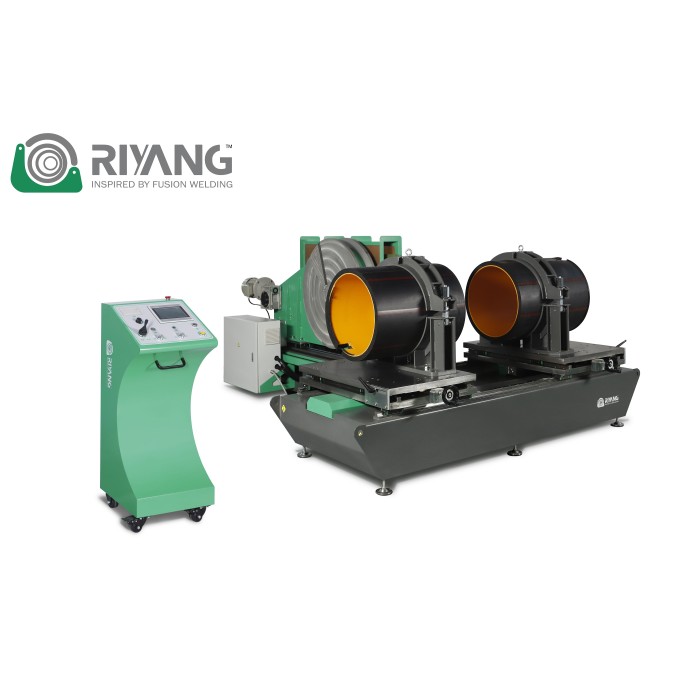

Fitting Fabrication Machine ATLA500 CNC 200MM - 500MM
Fitting Fabrication Machine ATLA500 CNC 200MM - 500MM
Detail Information
Fitting Fabrication Machine ATLA500 CNC 200MM-500MM
ATLA fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses, and wyes up to 500mm.
With the help of jaws, it could make different fittings of various sizes.
The ATLA500 CNC welding machine could weld plastic materials like HDPE, PP, PVDF.
|
Product Details
|
|||
|
ELBOWS
|
OD 200MM - 500MM ( 0º - 90º )
|
TEES & CROSSES
|
OD 200MM - 500MM
|
WYES ( *OPTION ) | OD 200MM - 500MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC |
TOTAL POWER | 26KW | POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ |
Standard Composition
Featured by
- A machine body with two working tables, both driven by the hydraulic system;
- A operation panel with an automatic control system makes the whole welding process in a simple, efficient, and precise way. After setting the welding data (SDR, Pipe diameter, Standard requirement ), the welding machine will start welding automatically, so that the operators could mainly focus on the welding process, stay away from other interference. And the build-in memory could record the welding process and report it to the operator by transferring the data from operation panel to computer by USB connection, or automatically read out by connecting a printer;
- A milling cutter with hydraulic movement in/out, started by an electrical motor;
- A Teflon coated heating plate with hydraulic movement in/out;
- With a full set of aluminum inserts and steel clamps, which make fittings elbows, tees, and crosses.
- Wyes clamps φ500 (45°and 60°): inserts from 200mm to 450mm
- Clamps for welding flange necks
- Imperial inserts
- Hydraulic open/close elbows clamp
- Hydraulic open/close tees and crosses clamp
- Hydraulic locking
