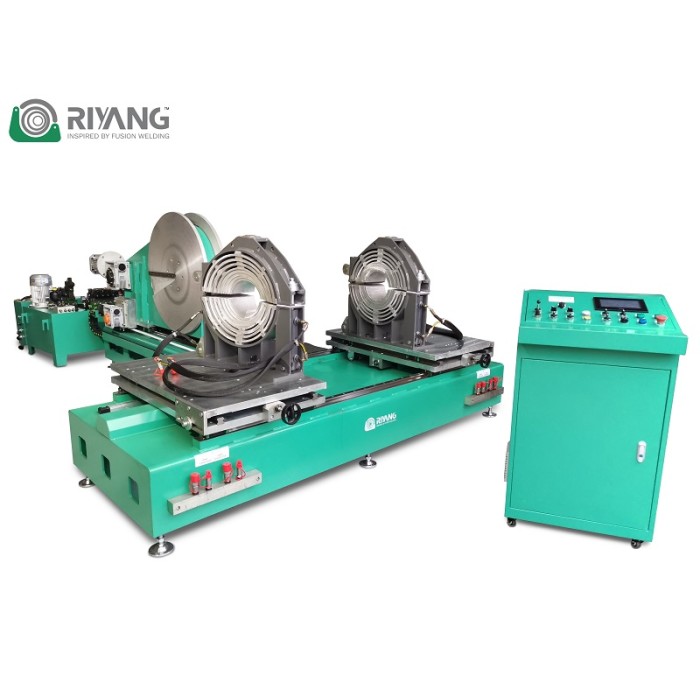

Fitting Fabrication Machine ATLA500 CNC 200MM - 500MM
Fitting Fabrication Machine ATLA500 CNC 200MM - 500MM
| Categories | Fitting Fabrication Machines |
|---|---|
| Brand | RIYANG |
| Model | ATLA500 CNC |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Download |  |
| Update Time | Apr 29,2025 |
Detail Information
Fitting Fabrication Machine ATLA500 CNC 200MM-500MM
ATLA fitting fabrication machine is designed to fabricate fittings like elbows, tees crosses, and wyes up to 500mm.
With the help of jaws, it could make different fittings of various sizes.
The ATLA500 CNC welding machine could weld plastic materials like HDPE, PP, PVDF.
|
Product Details
|
|||
|
ELBOWS
|
OD 200MM - 500MM ( 0º - 90º )
|
TEES & CROSSES
|
OD 200MM - 500MM
|
WYES ( *OPTION ) | OD 200MM - 500MM ( 45º - 60º ) | MATERIALS | HDPE - PP - PPR - PVDF - PVC |
RATED POWER | 5.25KW | PISTON AREA | 20.02CM2 |
POWER SUPPLY | 380VAC, 3 PHASE, 50/60HZ | TOTAL ABSOREBED POWER | 7.5KW |
|
TOTAL WEIGHT (N.W./G.W.)
|
775KG / 942KG
|
MACHINE DIMENSION |
1350*1350*1370MM
|
Standard Composition
Featured by
- Basic machine completes with two carriages, both driven by the hydraulic system.
- Manual hydraulic control panel with all functional keys and buttons plane layout.
- Electrical trimmer with gear and safety microswitch.
- PTFE coated heating plate with a steel shield.
- Left and right elbow clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm
- Left and right 90°Tees and Crosses clamps φ315mm with a full set of aluminum inserts from φ90mm to φ280mm
- 45°and 60° Wyes clamps φ315mm with full set of aluminum inserts from φ90mm to φ280mm.
- Stub end device
- Data logger
