Extrusion Welder RYH1600D | RIYANG STORE
Extrusion Welder RYH1600D | RIYANG STORE
Detail Information

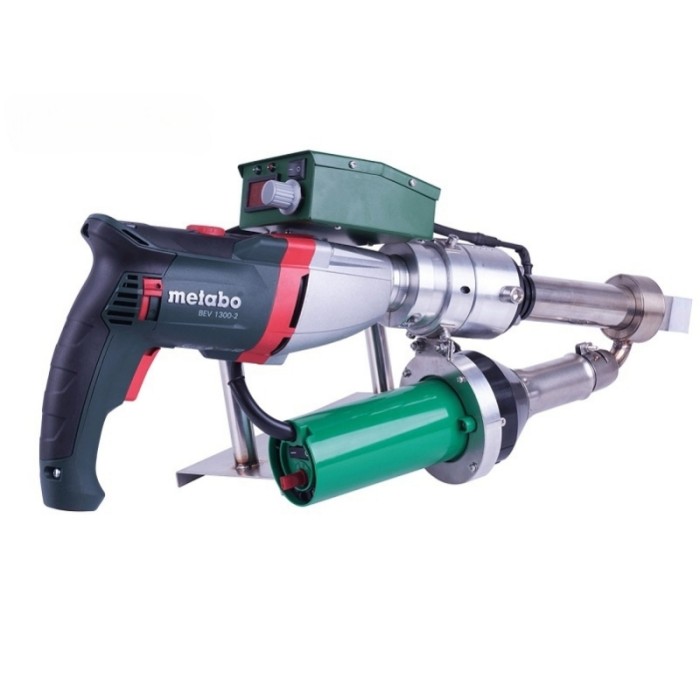

Extrusion Welder RYH1600D
This extrusion welder RYH1600D has functions of independent heating systems, digital display controller, 360-degree rotating welding head, motor cold start protection, which is applicable to weld PE, PP, PVDF and other hot melt materials.
|
Product Details
|
|||
|
HEAT/FEED
|
DUAL HEATING / WELDING ROD
|
HOT AIR POWER
|
1600W
|
WELDING ROD HEATING POWER | 800W | DRIVING MOTOR POWER | 1300W |
HOT AIR TEMPERATURE | 20 - 620 ℃ | WELDING ROD EXTRUDING TEMPERATURE | 200 - 380 ℃ |
VOLTAGE | 220V, 50/60HZ | TEMPERATURE DISPLAY | YES |
|
MOTOR COLD START PROTECTION
|
YES
|
EXTRUDING VOLUME |
2-2.5KG/H
|
WELDING ROD MATERIAL AND SIZE | PP / PE ø3-4MM, ø5MM CUSTOMIZED | DRIVING MOTOR | METABO |
WELDED THICKNESS | 1-20MM | NET WEIGHT | 6.5KG |
Dual Heating System
Welding rod feed heating system and hot air heating system ensure the best welding quality
Motor Cold Start Protection
Extruding motor will shut down automatically if it has not reached the preset melting temperature, which avoids loss caused by an operating mistake
Digital Display Controller
Microcomputer chip controller makes easy operation and strong protection
360-degree Rotating Welding Head
The 360-degree rotating hot air welding nozzle can be applied to different needs
Driving Motor
With imported German Metabo drill or Japanese HITACHI drill
