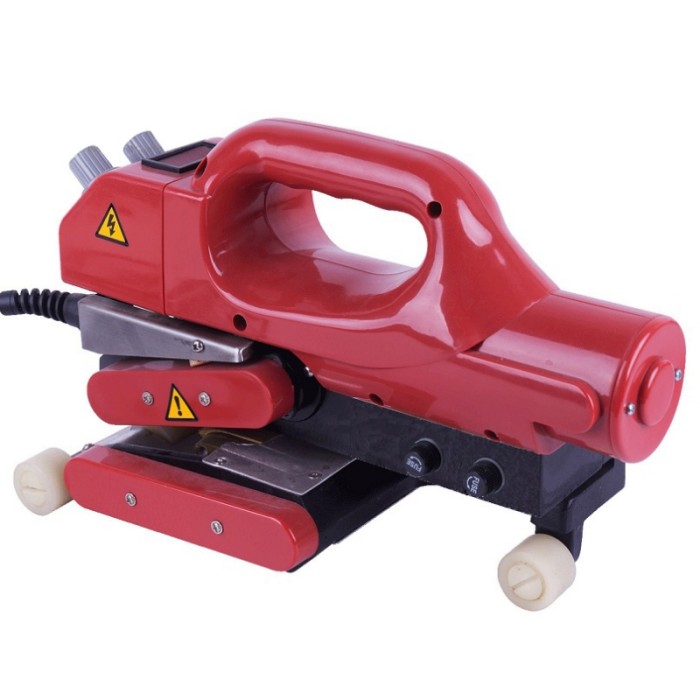

Geomembrane Hot Air Welder RYG800D
Detail Information
Geomembrane Hot Air Welder RYG800D
Geomembrane Hot Air Welder RYG800D is small, light, high welding efficient.
This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.
|
Product Details
|
|||
|
VOLTAGE
|
220V, 50/60HZ
|
DIGITAL DISPLAY
|
YES
|
WELDING SPEED | 0.5 - 5M/MIN | HEATING TEMPERATURE | 0 ℃ - 450 ℃ |
MATERIAL THICKNESS WELDED | 0.5MM, 2.0MM | OVERLAP WIDTH | 10CM |
SEAM WIDTH | 12.5MM*2, INTERIOR CAVITY 12MM | SEAM STRENGTH | ≥ 85% MATERIALS (TENSILE RESISTANT IN SHEAR DIRECTION) |
|
NET WEIGHT
|
5KGS
|
INSULATION CLASS |
CLASS II
|
Standard Production
Moulding Process
Control System
Advanced digital display
Pressure Adjustment
Pressure adjusted based on the material and thickness
Pressure Roller
Imported silica gel pressure roller; steel pressure roller is special for welding over 1.00mm thickness.
Heating System
Customized metal hot wedge with powerful heating elements
