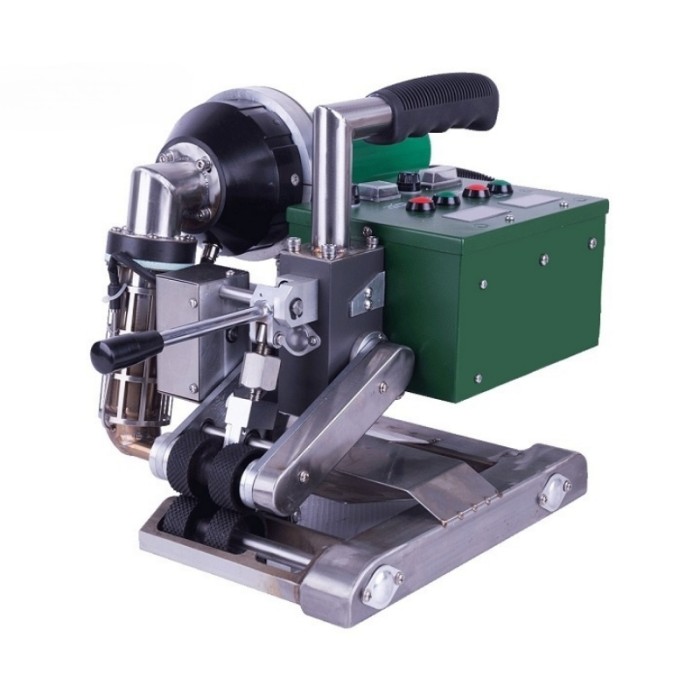

Geomembrane Hot Wedge Welder RYG700
Detail Information
Geomembrane Hot Air Welder RYG700
Geomembrane Hot Wedge Welder adopts an advanced hot air heating system. With small, light, and high speed, it perfects the welding quality even if corrosive materials and bad working environment.
This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions, and other waterproofing projects.
|
Product Details
|
|||
|
VOLTAGE
|
220V, 50/60HZ
|
POWER
|
3000W
|
WELDING SPEED | 0.5 - 4.5M/MIN ADJUSTABLE | HEATING TEMPERATURE | 20 ℃ - 620 ℃ ADJUSTABLE |
MATERIAL THICKNESS WELDED | 0.5MM - 2.0MM (SINGLE LAYER) | OVERLAP WIDTH | 16CM |
SEAM WIDTH | 15MM*2, INTERIOR CAVITY 15MM | SEAM STRENGTH | ≥ 85% MATERIALS |
|
NET WEIGHT
|
7.5KGS
|
PACKING MATERIAL |
ALUMINUM BOX
|
Control System
Advanced intelligent digital control system with temperature and speed readed on LCD screen.
Pressure Adjustment System
Adanced "T" jib design and pressure regulation structure.
Pressure Rollers
Special stainless steel pressure rollers with strong pressure force.
Hot Air Heating System
Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment.
- Railway/ highway subway tunnel waterproof construction;
- Water conservancy projects, man-made landscape;
- Riverbank, aquaculture farm;
- Refuse landfill, sewage treatment;
- Chemical, mining industry;
- Construction waterproofing projects.
