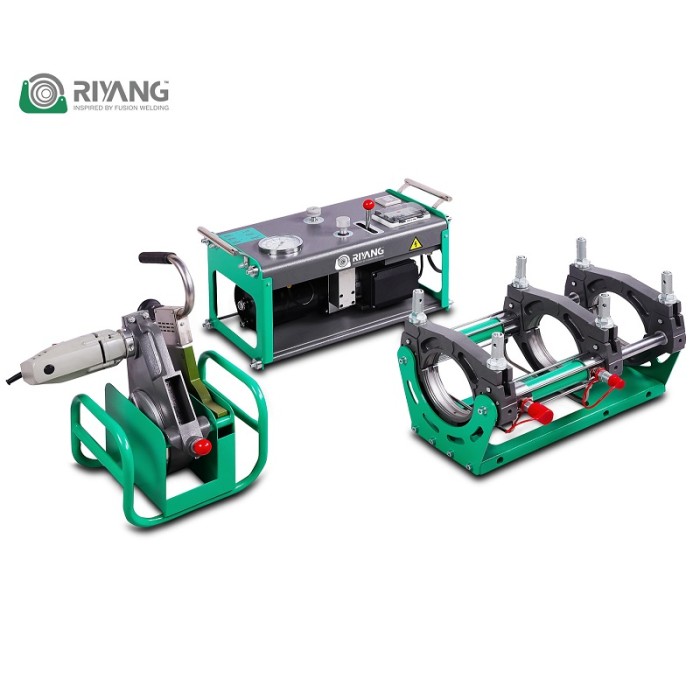

Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)

Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)

Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)
Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)
CategoriesHydraulic Butt Fusion Machines
BrandRIYANG
ModelV160 BEE
CertificateCE, ISO9001
Packing MaterialPlywood Box
MOQ1set
Working Range in mm50mm - 160mm
Working Range in Inch2" - 6" IPS
Working Pressure Range0 - 80Bar
HDPE Welding Standard AppliedISO21307, DVS2207/1, ASTM F2620 etc.
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
Download
Update TimeDec 31,2024
Detail Information

Hydraulic Butt Fusion Machine V160 BEE 50MM-160MM (2" IPS -6" IPS)


The V160 BEE Butt Fusion Welding Machine from RIYANG is designed to meet the demanding requirements of various applications, ensuring precise and reliable fusion welding. Key application areas include:

●Water Infrastructure: Ideal for joining thermoplastic pipes in water supply networks, guaranteeing secure and leak-free connections.
●Gas Distribution Systems: A reliable solution for welding pipes in gas distribution systems, ensuring the integrity of gas infrastructure.
●Industrial Pipelines: Suited for a range of industrial applications utilizing thermoplastic pipes, providing durable fusion joints.
●Mining Industry: The V160 BEE excels in the mining sector, delivering efficient fusion welding for pipelines critical to mining operations, ensuring dependable and durable connections for water, chemicals, or other resources.
Product Details
WELDING RANGE O.D.
50 - 160 MM
WELDING RANGE INCH
2" - 6" IPS
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 280ºC
HEATER POWER
1.0 KW
PACKING DIMENSION
820*400*380 MM
TRIMMER POWER
0.75 KW
440*400*520 MM
PUMP POWER
1.1 KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
105 KGS
RIYANG Butt Welding Machine V160BEE
Machine Chassis

● The integral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.
●  Three main clamps design gives help to weld pipe with short spigt fittings.


Heating Plate & Trimmer

● Utilizes Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 3°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs a powerful electric drill for efficient pipe milling with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.



Power Station

● Robust hydraulic power with a maximum system pressure of up to 80 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.

Data Logger PEWELDBANK
Stub End Holder
Aluminum Stub End Holder
RIYANG HDPE Pipe Support Roller
Roller Support
Reduction Inserts
Inserts
About RIYANG
RIYANG Fusion Manufacturing Limited, established in 2010, has emerged as a prominent force in the world of thermoplastic welding equipment. Our journey began with a commitment to reliability, efficiency, ruggedness. At RIYANG, our unwavering dedication to excellence is the cornerstone of our product design, engineering, and manufacturing. We take pride in offering the advanced solutions to meet the evolving needs of the industry. For more information, please explore our RIYANG website at www.riyang-welding.com.
