Home / All / Butt Fusion Machine / Manual Butt Fusion Machines /
Manual Butt Fusion Machine V160M PLUS 50MM-160MM (2" IPS - 6" IPS)
Manual Butt Fusion Machine V160M PLUS 50MM-160MM (2" IPS - 6" IPS)
| Categories | Manual Butt Fusion Machines |
|---|---|
| Brand | RIYANG |
| Model | V160M PLUS |
| Certificate | CE, ISO9001 |
| Packing Material | Plywood Box |
| MOQ | 1set |
| Range in inch | (2 |
| FOB port | Shanghai |
| Terms of Payment | L/C, Western Union, T/T, Paypal |
| Update Time | Mar 29,2025 |
Detail Information

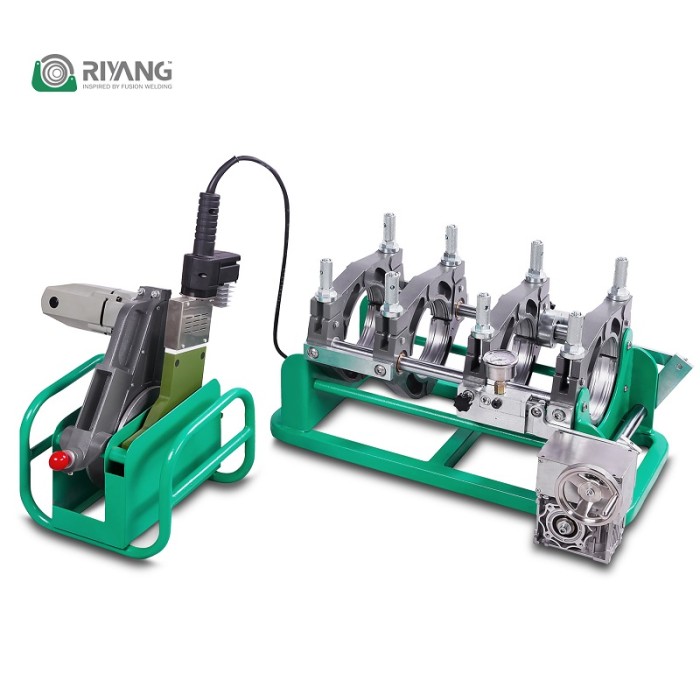

Manual Butt Fusion Machine V160M PLUS 50MM-160MM (2" IPS - 6" IPS)
Riyang V series M is an on-site manual butt fusion welding machine with a pressure gauge.
It is used to butt weld pipe and fittings such as elbow, tees, wye, and flange necks without any additional equipment by simply adjusting the clamps and drag bar.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF, and other thermoplastics material.
|
Product Details
|
|||
|
WELDING RANGE O.D.
|
50MM - 160MM
|
POWER SUPPLY
|
1.8KW
|
POWER SUPPLY | 220V±10%, 50/60HZ | TEMPERATURE RANGE | MAX. 300ºC |
GROSS WEIGHT | 74KGS | PACKING DIMENSION | 450*480*420 MM |
|
PACKING MATERIAL
|
PLYWOOD BOX
|
380*420*570 MM
|
|
What's special about the V160M PLUS?
- Pressure control is more accurate, can match the hydraulic mode, there're full of spring-pointer type in the market, the longer it operates the higher the error rate will be, as the spring will lose elasticity. Our pressure gauge is oil pressure type, which is installed with the cylinder cavity, which is equipped with a seal ring, can detect accurate pressure.
And RIYANG data logger is also compatible with it.
