Hydraulic Butt Fusion Machine V2000 1400MM-2000MM

Hydraulic Butt Fusion Machine V2000 1400MM-2000MM

Hydraulic Butt Fusion Machine V2000 1400MM-2000MM
CategoriesHydraulic Butt Fusion Machines
BrandRIYANG
ModelV2000
CertificateCE, ISO9001
Packing MaterialPlywood Box
MOQ1set
FOB portShanghai
Terms of PaymentL/C, Western Union, T/T, Paypal
Download
Update TimeNov 22,2024
Detail Information

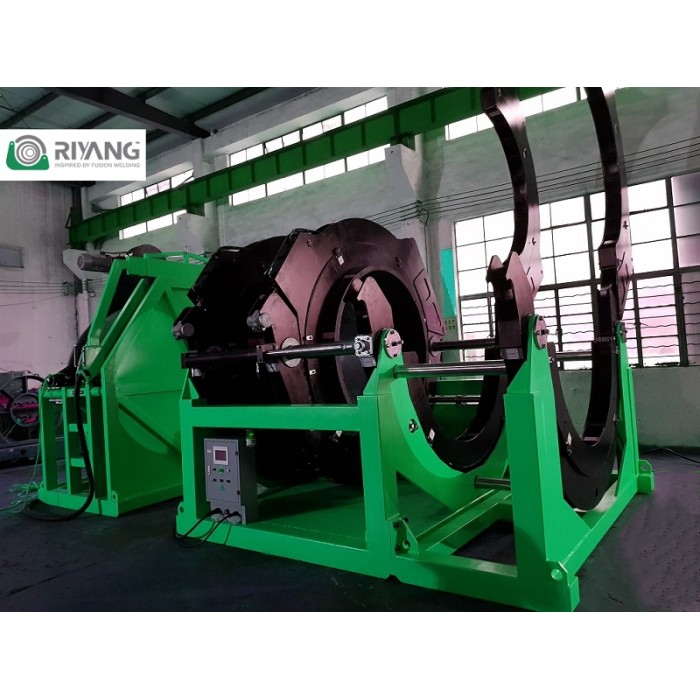

Hydraulic Butt Fusion Machine V2000 1400MM-2000MM
V2000 is an on-site hydraulic butt fusion welding machine suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF, and other thermoplastics material.

The machine is used to butt weld pipe and fittings such as elbow, tees, wye, and flange necks without any additional equipment by simply adjusting the clamps and drag bar.
Product Details
WELDING RANGE O.D.
1400MM - 2000MM
PISTON AREA
107 CM²
POWER SUPPLY
380V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 280ºC
HEATER POWER
70 KW
PACKING DIMENSION
N/A
TRIMMER POWER
7.5 KW IP54
N/A
PUMP POWER
7.5 KW IP54
 N/A
WORKING PRESSURE RANGE
0 - 160 BAR
GROSS WEIGHT
N/A
